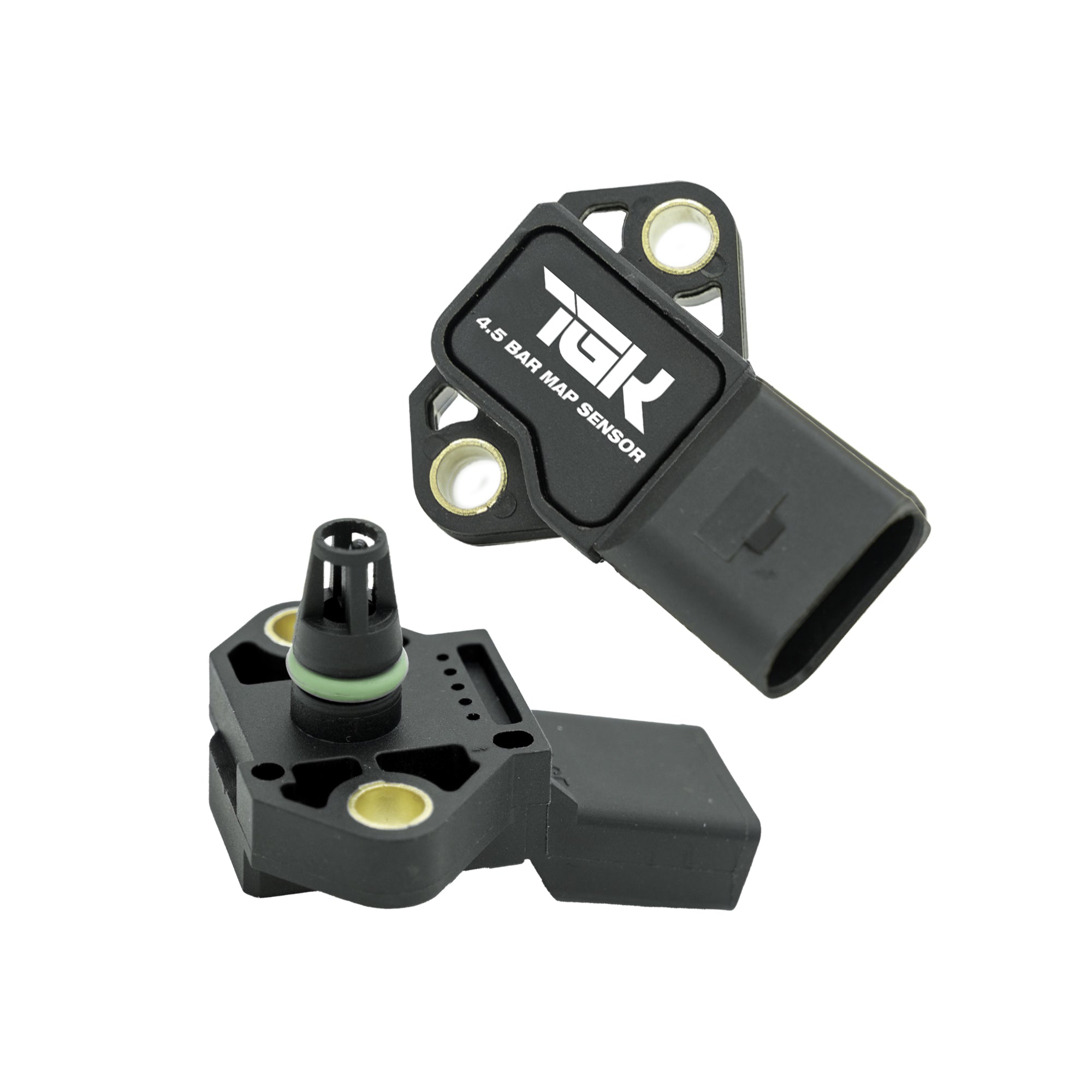

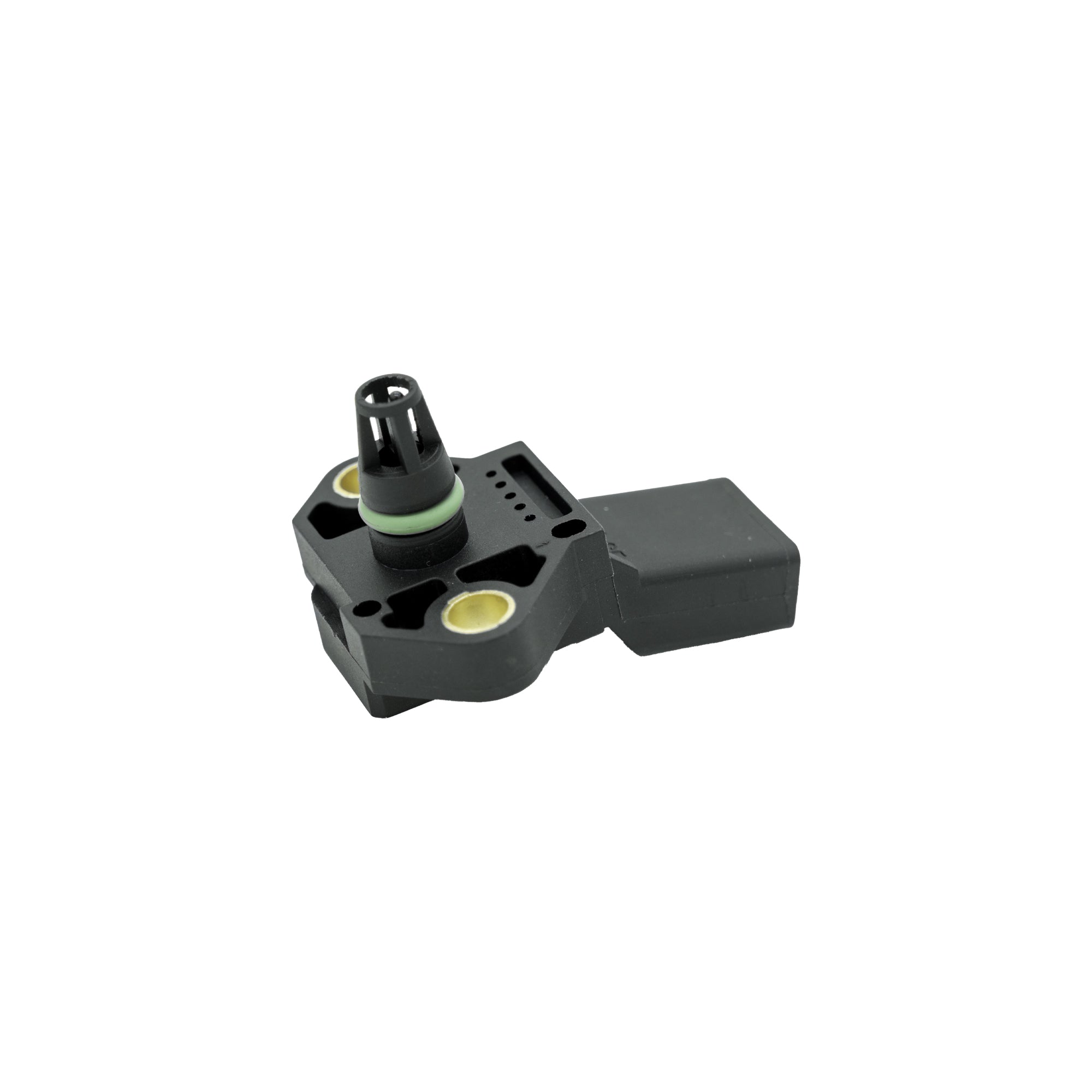

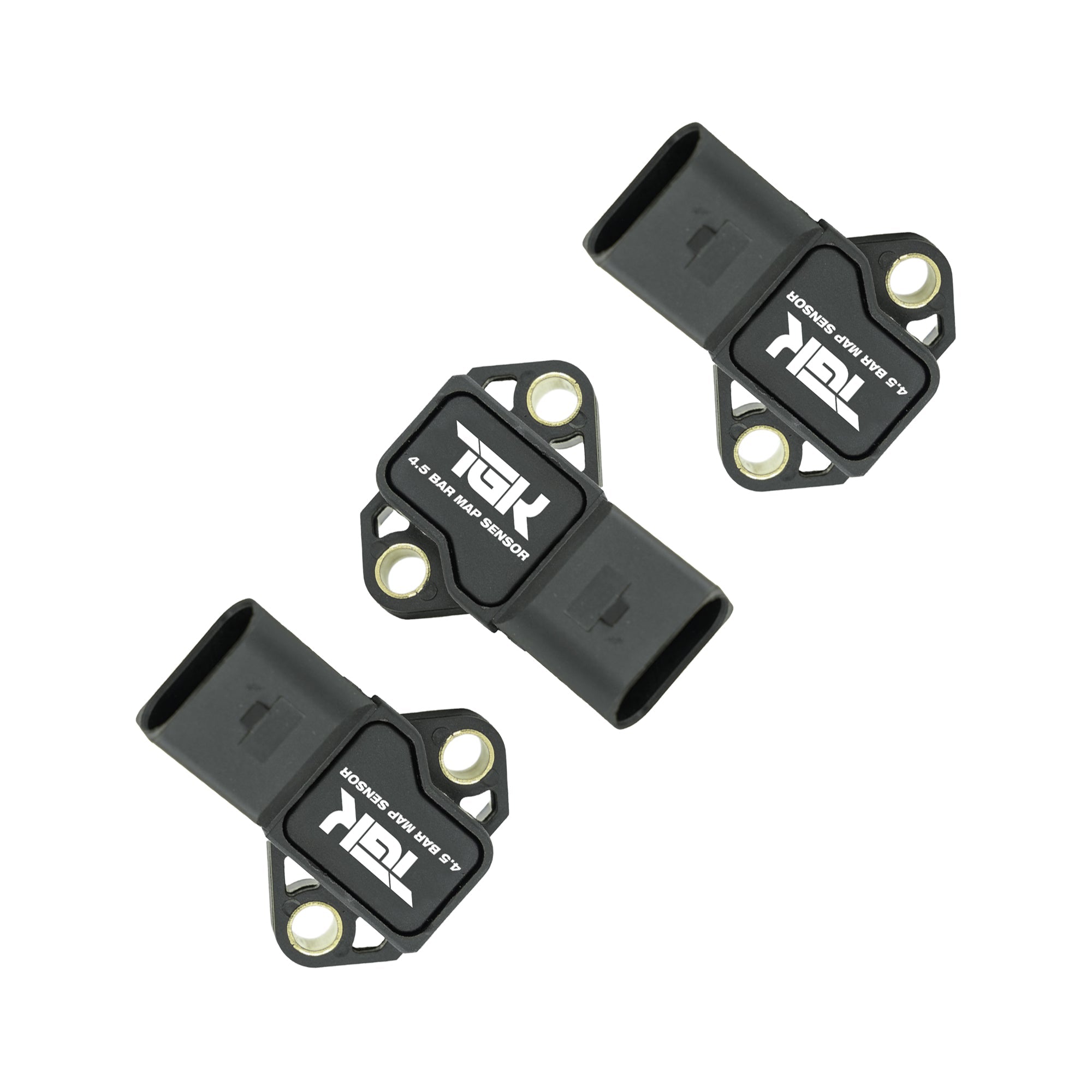

TGK Motorsport Audi EA824 4.0T 4.5 Bar Map Sensors
3 Sensors
$89.99
Sale price
$89.99
Regular price
Skip to product information
TGK Motorsport Audi EA824 4.0T 4.5 Bar Map Sensors
$89.99
Sale price
$89.99
Regular price
Overview
The TGK Motorsport 4.5-Bar MAP Sensor Kit is a direct replacement for the factory MAP (Manifold Absolute Pressure) sensors found on various Audi motors. This upgrade enables the ECU to accurately read higher boost pressures, making it an essential enhancement for vehicles equipped with larger, high-boost turbochargers that exceed the factory 3-bar sensor limits. The kit is designed for seamless installation, fitting directly into the charge cooler housing, and connects effortlessly to the factory engine harness.
The TGK Motorsport 4.5-Bar MAP sensors are precision-engineered sensors that replace the original units without requiring any complex wiring modifications or additional adapters. Each sensor is housed in an exact-fit casing, ensuring a straightforward upgrade process. These map sensors come singular up to 3 sensors. Stock configuration uses 3 sensors, while our Blow Off Valve conversion only uses 2. If you ever find yourself needing a single sensor, we've got you covered!
Specifications
| Max Pressure Rating | 4.5 Bar |
| Application | Audi EA824 4.0T |
| Quantity Options | 1-3 Sensors Available |
| Installation | Direct Factory Replacement |
| Gradient Setting | 959.16 hPa/V |
| Offset Setting | -113.98 hPa |
Features & Benefits
✓
4.5-Bar Pressure RatingAccurately reads higher boost pressures beyond factory 3-bar sensor limits for high-boost turbocharger applications.
✓
Direct Factory ReplacementPrecision-engineered sensors in exact-fit casings that install seamlessly without wiring modifications or adapters.
✓
Flexible Quantity OptionsAvailable as single sensors up to complete 3-sensor kits to match your specific configuration needs.
✓
Factory Harness CompatibleConnects effortlessly to existing engine harness for plug-and-play installation in charge cooler housing.
✓
Precision CalibratedEngineered for straight-line accuracy with specific gradient and offset values for optimal ECU tune integration.
✓
Professional Tuning SupportTGK offers calibration services to ensure proper ECU tune integration for customers needing assistance.
Frequently Asked Questions
Do I need to recalibrate my ECU tune?
Yes, this kit requires a specific 4.5-bar sensor calibration in your ECU tune. Do not use with ECU tunes designed for stock sensors. Use gradient: 959.16 hPa/V and offset: -113.98 hPa.
How many sensors do I need for my setup?
Stock configuration uses 3 sensors, while the Blow Off Valve conversion only uses 2. Sensors are available individually or in complete kits to match your specific needs.
Will these sensors work with my factory wiring?
Yes, these sensors are designed as direct replacements that connect effortlessly to the factory engine harness without requiring complex wiring modifications or additional adapters.
Do you offer tuning support for calibration?
Yes, TGK offers Tuning Calibration Services for customers who aren't confident in making the ECU adjustments themselves. This ensures proper integration with your tune.
What boost pressure can these sensors handle?
These 4.5-bar MAP sensors can accurately read boost pressures well beyond the factory 3-bar sensor limits, making them essential for high-boost turbocharger applications.
