TGK Motorsport Swaybar Kit - Audi B8/B8.5 Q5/SQ5
$629.99
Sale price
$629.99
Regular price
Overview
If you're looking to improve the handling of your Audi B8/8.5 Q5/SQ5, this is the best place to start! These cars have a lot more body roll than what's to be desired factory, and the stock sway bars don't quite do enough to keep the body from understeering. TGK Motorsport Sway bars are made from solid spring steel to give you the best strength in a smaller size, while helping eliminate understeer from this platform.
To tighten the swaybars even further, this bundle includes our spherical swaybar endlinks! The rear endlinks are plastic and are known to twist and eventually snap. Gone are the days of those!
Specifications

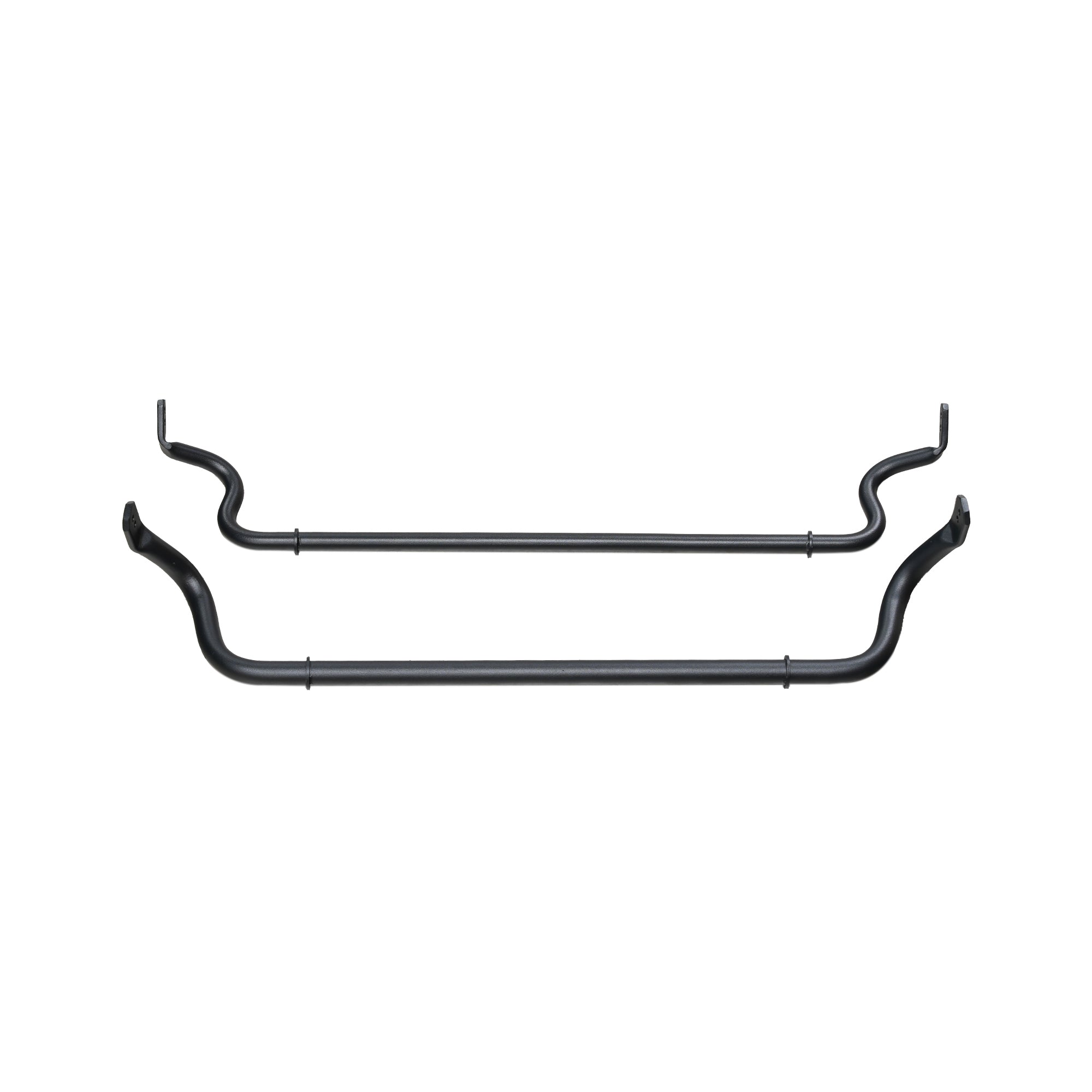

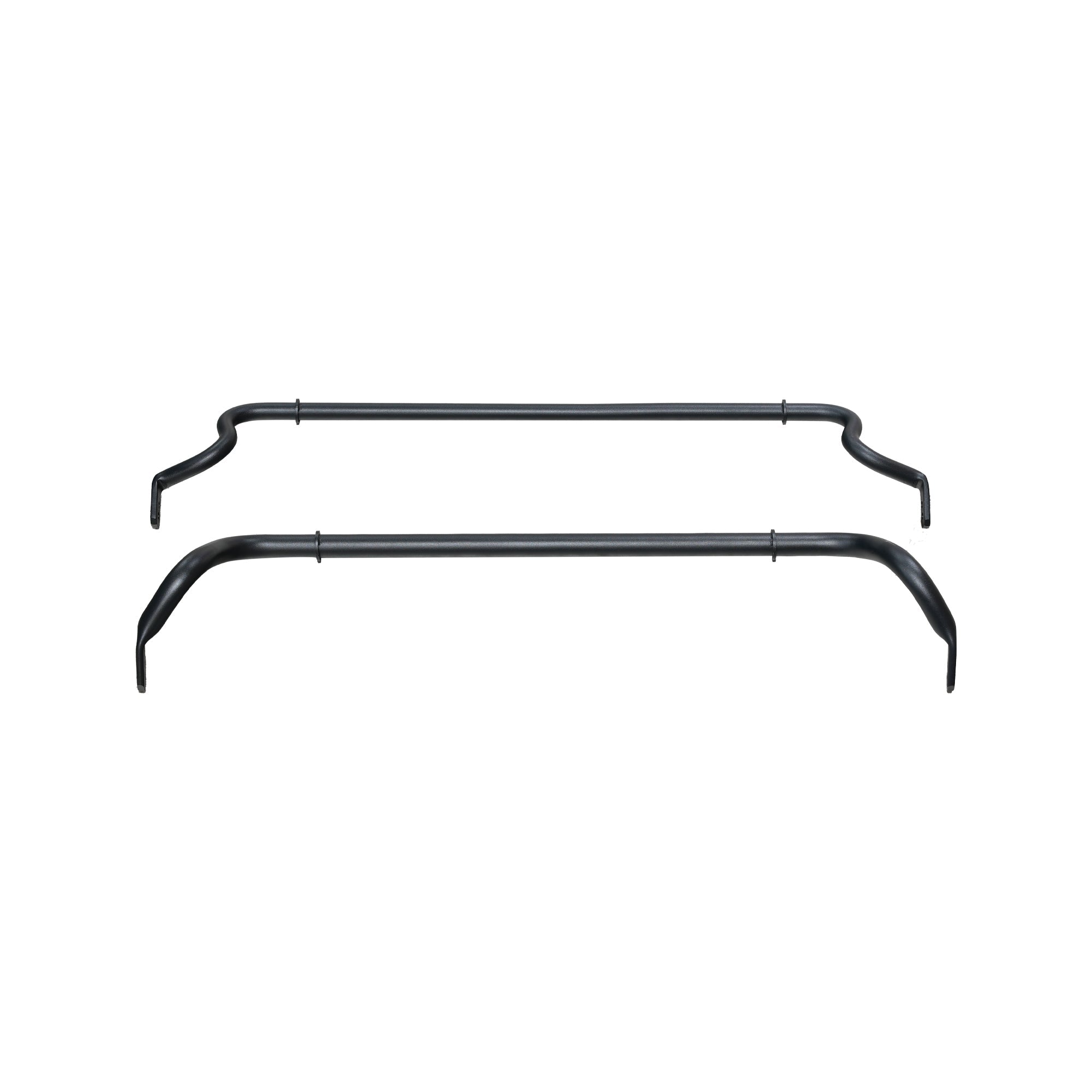

| Front Sway Bar Diameter | 30MM Solid Spring Steel |
| Rear Sway Bar Diameter | 25.4MM Solid Spring Steel |
| Finish | Powder Coated for Corrosion Resistance |
| Front Mounting | OEM Bushings and Mounts |
| Rear Brackets | Black Anodized 6061-T6 Billet with Grease Port |
| Hardware Included | Spherical Swaybar Endlinks Included |
Configuration Options
| Stiff | Stiffer | |
|---|---|---|
| Front Stiffness Increase | 123% | 161% |
| Rear Stiffness Increase | 135% | 179% |
Features & Benefits
✓
Solid Spring Steel ConstructionMaximum strength in a compact size for superior performance and durability.
✓
Eliminates UndersteerSignificantly reduces body roll and improves cornering balance on the Q5/SQ5 platform.
✓
Adjustable Stiffness SettingsTwo stiffness options for both front and rear bars to fine-tune handling characteristics.
✓
Spherical Endlinks IncludedReplaces weak factory plastic endlinks with precision spherical bearings for consistent performance.
✓
Corrosion Resistant FinishPowder coated bars and anodized brackets ensure long-lasting protection against the elements.
✓
OEM IntegrationFront utilizes factory bushings and mounts while rear includes billet brackets with grease ports.
Frequently Asked Questions
What's the difference between the stiff and stiffer settings?
The stiff setting provides 123% front and 135% rear stiffness increase for street driving, while stiffer offers 161% front and 179% rear increase for track use.
Do I need to replace my factory bushings?
No, the front sway bar utilizes your existing OEM bushings and mounts. The rear includes new billet brackets with grease ports.
Are endlinks included with this kit?
Yes, spherical swaybar endlinks are included to replace the weak factory plastic endlinks that are prone to twisting and breaking.
Will this eliminate all understeer?
This sway bar kit significantly reduces understeer by controlling body roll, but complete elimination depends on other suspension components and driving conditions.
Is installation hardware provided?
The kit includes spherical endlinks and rear billet brackets. Install instructions are provided to guide you through the installation process.
